Anelli d'arresto Spirolox
Gli anelli di ritegno sono elementi elastici (radicalmente) che consentono di provvedere a bloccaggi assiali di organi meccanici.
Gli anelli di ritegno sono realizzati con piattina a sezione rettangolare in acciaio ad alto grado di resistenza o, a seconda delle necessità, in acciai inox o acciai speciali
.La piattina è avvolta ad elica continua a due o tre spire le quali consentono una contrazione radiale dell’anello adattandolo sia per montaggi interni che esterni
.Nelle illustrazioni allegate sono mostrati alcuni dei tipi di montaggio di questi anelli
SCHEDA DI MONTAGGIO
1) Riduce i tempi di lavorazione - non occorrono alesaggi né forature per coppiglie.
2) Leggero.
3) Facile da montare e smontare - non richiede attrezzi particolari.
4) Perfettamente circolare, assicura un solido contatto ed una pressione uniforme.
5) Rimane stabile nelle scanalature contro le spinte assiali.
APPLICAZIONI TIPICHE
- Bloccaggio assiale per cuscinetti
- Bloccaggio assiale per ingranaggi
- Arresti per bronzine
- Arresto per molle
- Giunti flessibili
- Tasmissioni meccaniche
- Equipaggiamenti per la gestione automatica di trasporti
- Guarnizioni
- Fissaggi di unità in Aeronautica
- Veicoli semoventi
- Apparecchi per comunicazioni
- Apparecchi elettronici
- Macchine elettriche
- Machine per agricoltura
- Ferramenta
- Applicazioni domestiche
- Equipaggiamenti idraulici
- Strumentazioni e controlli
- Macchine utensili
- Macchinari
- Movimentazione materiali
- Missili e razzi
- Equipaggiamenti nucleari
- Apparecchi fotografici
- Attrezzi sportivi
- Giocattoli

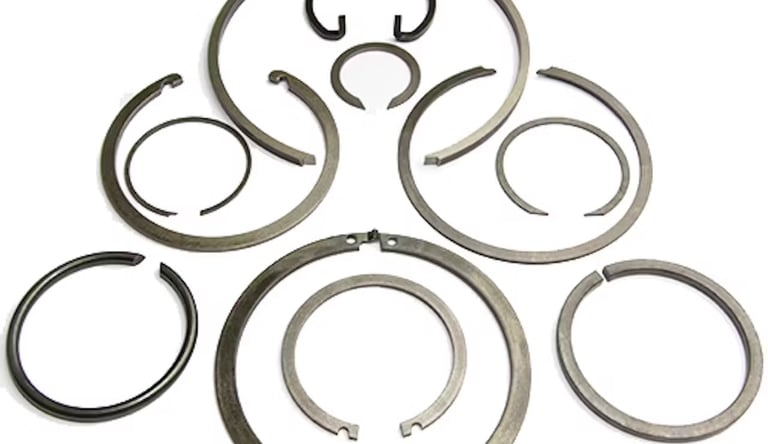

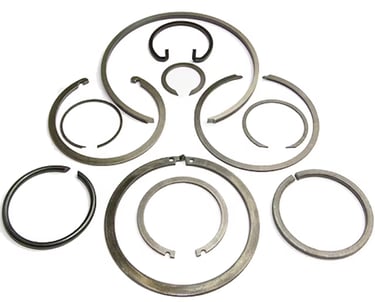

Snap Rings
A popular choice of retaining ring configurations is the Snap Ring. Produced by edge-winding with no special tooling charges, Snap Rings have been used for many years in the automotive and heavy equipment industries as a standard choice of engineers. We can provide Snap Rings in carbon steel and stainless steel and in both metric and Royal sizes. Snap Rings can withstand high forces and impact loads and are easily installed and removed from their internal or external groove for eld servicing your product.
Spirolox Retaining Rings
Spirolox Retaining Rings have no lugs to interfere in your assembly.
Spirolox Rings are manufactured by coiling the ring from flat wire.
This unique process produces a retaining ring that has no protruding ears or burrs to interfere with your assembly. Because coiling produces a retaining ring with no scrap, the Spirolox Ring can be economically produced in carbon steel, stainless steel, coppers, and many other alloys.
ADVANTAGES OF SPIROLOX RINGS:
~ No gap - 360 ̊ retaining surface
~ No protruding lugs to interfere with mating components (uniform cross-section)
~ Economically produced in stainless steel because the coiling process produces no scrap
~ No-Tooling-Charge on special designs
~ Easy installation and removal
Altri Prodotti_Other Products

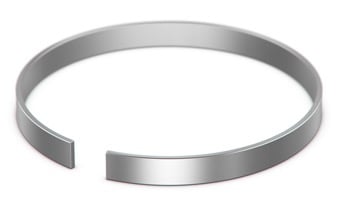

Hoopster Rings
Hoopster Retaining Rings o er an innovative way to retain components. Hoopsters have a minimal radial projection and a shallow groove depth. The low pro le Hoopsters are ideal for applications with thin wall cylinders. Ends ex for simple assembly and removal with no special tools required.
Wave Rings
The WaveRing is a spiral retaining ring with an axial wave form. It acts like a standard retaining ring with the additional feature of compressibility. It compensates for the overall length tolerance of stacked components, while still acting as a retaining ring. Once assembled the WaveRing will reduce looseness and vibration in the assembly.Designed to into a groove, the WaveRing applies pressure in two directions: against the groove wall and against the assembly components. Single, double or multiple turns in the WaveRing are possible as well as a choice of materials, including our standard 17-7 PH stainless and carbon steel.
Wave Rings

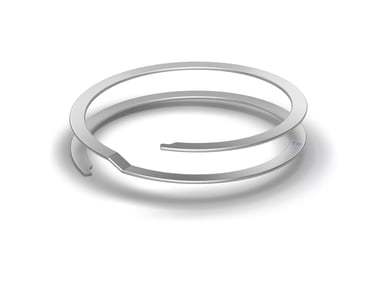

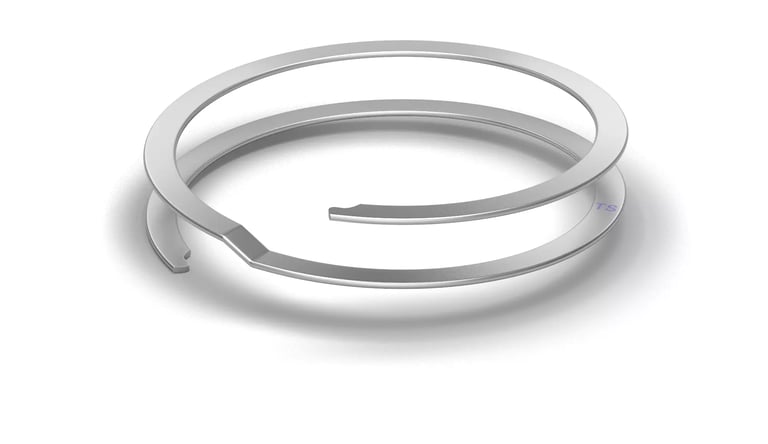

Special Rings
A major segment of Smalley manufacturing is in “special” or prototype retaining rings. Common specials include balanced, multi-turn (4,5,6 turns and more) and special ends in diameters from 5 mm – 3000 mm (0,200 in – 120 in) and larger.

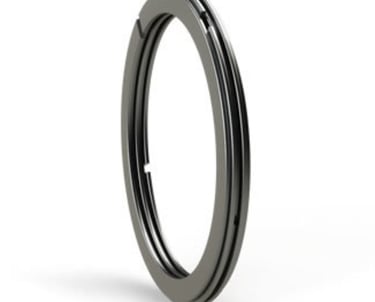

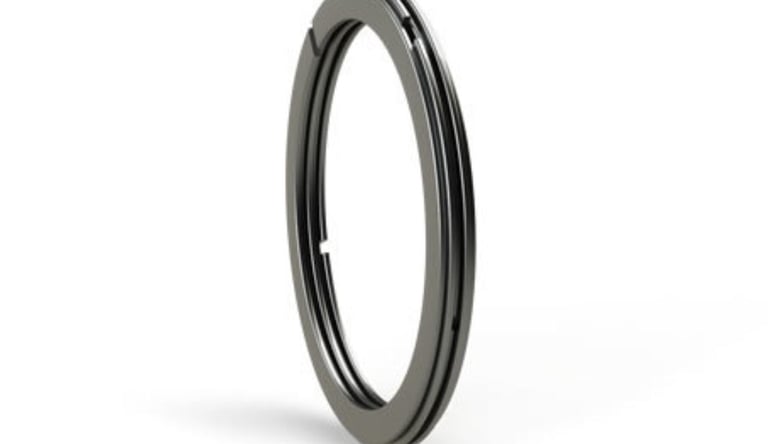

Fey Rings
Fey Rings are precision-engineered retaining rings commonly used as grease seals for plain and roller bearings. They serve a dual function: effectively retaining lubricants within the bearing assembly while also offering protection against the ingress of dust, dirt, and environmental moisture. This added barrier enhances the durability and performance of mechanical systems by reducing contamination and minimizing wear. Fey Rings are particularly valuable in demanding environments where sealing efficiency and component longevity are critical.
